Greener carbons for sustainable batteries – achievements after first half of the project work

Press Release /

Project HiQ-CARB
© Fraunhofer ISC
Project HiQ-CARB: first results
© Project HiQ-CARB

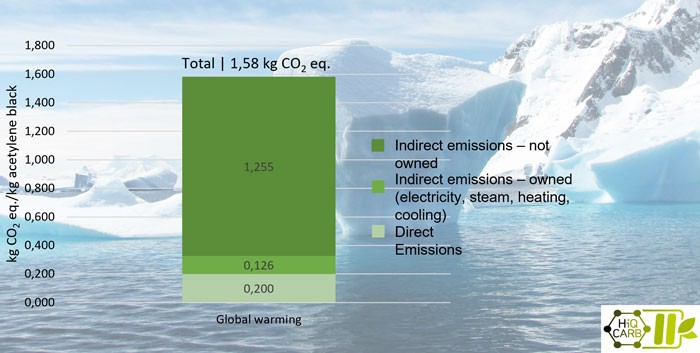

First results of the LCA study show a comparable low global warming impact of the HiQ-CARB acetylene black.

For the future decrease of carbon footprints in electromobility, the production of traction batteries has to become “greener”. In improving the electronic conductivity of battery cathodes carbon plays a critical role and thus is essential to achieve fast charging and discharging rates. The HiQ-CARB project, funded by EIT RawMaterials under the Horizon Europe Program started in 2021 to make the supply with high-quality conductive additives more sustainable, with low carbon footprint and resource-efficient carbon materials. The results after the first half of the project leave no doubt that a switch to more sustainable manufacturing methods is possible.



Large sectors of European industry, including the European automotive industry, are increasingly dependent on imported lithium-ion cells. According to increasing numbers of electric vehicles in use, the carbon footprint during fabrication gains momentum.

The HiQ-CARB approach for advanced and greener carbon additives is the combination of ultrathin carbon nanotubes and acetylene black beads thus receiving high conductivity and low CO2 emissions during fabrication.



The HiQ-CARB project team reached out to achieve a sustainable set of objectives, fostering Europe as a location for the production of lithium-ion batteries and the production of advanced materials for lithium-ion-batteries. Validating strategic roadmaps and go-to-market strategies guaranteed a solid foundation for the further innovation management concerning the upscaling of acetylene black production up to 100 metric tons in the first project half and also the purification process for Arkema’s ultrathin carbon nanotubes. In parallel dedicated test specifications and procedures were established to qualify the materials for the use in battery cells.



Another challenge is to disperse acetylene black and carbon nanotubes homogeneously for the further processing. After first tests and improvements new formulations promise good processing properties.



Regarding the evaluation of the environmental impact of improved carbon formulations for the battery cell production, the HiQ-CARB project partners are pleased to share the initial results of the Life Cycle Assessment (LCA) study, which evaluates the environmental impact assessment of acetylene black production by Orion Engineered Carbons. The study, which was led by the CyVi group from the University of Bordeaux and still needs to undergo a critical review, concluded that the current production of 1 kilogram of acetylene black by Orion Engineered Carbons, using acetylene from naphtha cracking, has a global warming potential of around 1.5 kilograms CO2 equivalent. A recent study1 on acetylene production from calcium carbide in China published global warming results of 6770 kilograms CO2 equivalent per t. “This means that our initial results estimate a global warming potential at least 4.5 lower than the one reported by the article,” as Prof. Guido Sonnemann from University of Bordeaux, head of the LCA work package, states. The LCA study involves the evaluation of other impact categories such as freshwater ecotoxicity, stratospheric ozone depletion and terrestrial acidification. Those results will be included in the final LCA report of the HiQ-CARB project.



“The project team worked very hard to manage some severe challenges. We’re quite happy with the impressing results of the first project half,” reports project coordinator Dr. Andreas Bittner from Fraunhofer ISC. “Next steps focus on further upscaling the acetylene black production as well as the process design for the pilot manufacture of battery cells with the new carbon formulations. We’re on track – and on the way to greener carbon additives with lower CO2 emission!”



Website HiQ-CARB



Citation

1. Zhang S, Li J, Li G, et al. Life cycle assessment of acetylene production from calcium carbide and methane in China. J Clean Prod. 2021;322(August):129055. doi:10.1016/j.jclepro.2021.129055


Project information

https://eitrawmaterials.eu/project/hiq-carb

HiQ-CARB. High-Quality Conductive Additives for Rechargeable Batteries



Duration:
2021-01-01 – 2024-09-30



Partners

  • Fraunhofer-Gesellschaft zur Förderung der angewandten Forschung e.V. / Fraunhofer Institute for Silicate Research ISC, Germany (project coordinator)
  • Aalto University, Finland
  • Arkema France, France
  • Customcells Itzehoe GmbH, Germany
  • Orion Engineered Carbons GmbH, Germany
  • Université de Bordeaux, France
